WSSMToken Consumer not found

Using IBM Security Federated Identity Manager (TFIM) I ran into some errors following the guide in the WSSM Web services security installation guide for the echo service application.

Whenever I started either the application or the client, I got an error similar to that below:

[9/20/12 18:01:14:500 EST] 0000003b ConfigUtil    E
    WSEC5007E: Class
    "com.tivoli.am.fim.wssm.tokenconsumers.WSSMTokenConsumer" not found.
[9/20/12 18:01:14:501 EST] 0000003b WSEMFRequestC W
     WSEC5008E: Unable to instantiate the class
    "com.tivoli.am.fim.wssm.tokenconsumers.WSSMTokenConsumer".
[9/20/12 18:01:14:501 EST] 0000003b SecurityHooks E
    WSWS1042E: An error occurred in loading the configuration for
com.ibm.ws.webservices.wssecurity.handler.WSEMFRequestConsumerConfig.
The exception is com.ibm.wsspi.wssecurity.SoapSecurityException:
WSEC5371E: TokenConsumer: classname attribute is required:
 com.ibm.ws.webservices.wssecurity.confimpl.
PrivateConsumerConfig$TokenConsumerConfImpl
(className=[com.tivoli.am.fim.wssm.tokenconsumers.WSSMTokenConsumer],
usage=[Required], type=[{urn:oasis:names:tc:SAML:1.0:assertion}Assertion],
trustedIdEvaluator=[null], trustAny=[false], provider=[null],
pkixBuilderParams=[null], callerRequired=[true],
callerProperties=[{com.ibm.wsspi.wssecurity.caller.tokenConsumerLN=Assertion,
com.ibm.wsspi.wssecurity.caller.tokenConsumerNS=urn:oasis:names:tc:SAML:1.0:
assertion}], trustMethodRequired=[false], trustMethodProperties=[null],
jaasConfig=[system.itfim.wssm.tam], jaasConfigProperties=[{}],
usedForVerification=[false], usedForDecryption=[false],
certPathSettingsAcquired=[false], isDefault=[false],
properties=[{com.ibm.wsspi.wssecurity.token.decouple=true,
com.ibm.wsspi.wssecurity.core.NonceMaxAge=300,
com.ibm.wsspi.wssecurity.core.NonceClockSkew=0}]).

At first I thought it was related to this:
http://www-01.ibm.com/support/docview.wss?uid=swg1PM30683

And I upgraded the WAS fixpack, to no avail, and then, I checked and re-checked my configuration, to find that I had messed up the shared library configuration. (Which was naturally my first instinct, but it all looked right…)

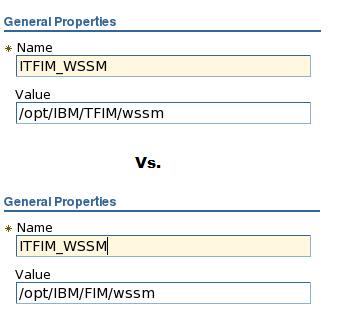

But I’ll let you spot the difference.

44957629-spotdifference

Anyway, thought I’d post this here, since I’d somehow replicated this configuration on two separate machines such that they were both giving me the same error…
